Introduction to PCB reliability test design

Date:2021-12-30 14:04:00Views:1418

With the development of the times, PCB circuit board plays an important role. The competition of terminal products is becoming increasingly fierce, which is bound to put forward higher requirements for the reliability of PCB products. When designing a reliable circuit board, you need to follow the same PCB design process. When designing a key circuit, its components and quality must be checked first, and a number of reliability tests must be carried out.

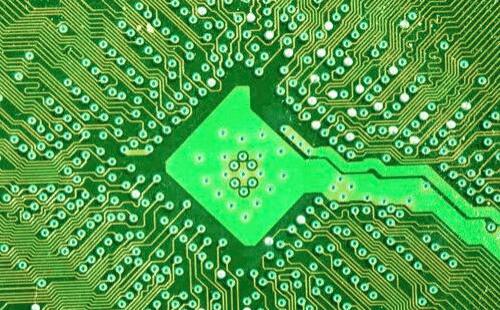

PCB电路板可靠性测试设计介绍说明

1. Ion pollution test

Purpose: check the quantity of ions on the surface of the circuit board to determine whether the cleanliness of the circuit board is qualified.

Methods: clean the sample surface with 75% propanol. Ions can be dissolved in propanol to change its conductivity. Record the change in conductivity to determine the ion concentration.

Standard: less than or equal to 6.45ug NaCl / sq.in

2. Chemical resistance test of solder resist film

Objective: to check the chemical resistance of solder resist film

method:QS (quantum satisfactory) dichloromethane was added dropwise to the sample surface. After a while, wipe the dichloromethane with white cotton. Check whether the cotton is dyed and whether the solder mask is dissolved. Standard: no dye or dissolved.

3. Hardness test of resistance welding layer

Objective: to check the hardness of solder mask

method:Place the circuit board on a flat surface. Scrape a certain range of hardness on the ship with a standard test pen until there is no scratch. Record the minimum hardness of the pencil. Standard: the minimum hardness shall be higher than 6h.

4. Stripping strength test

Purpose: check the force that can strip the copper wire from the circuit board

Equipment: peel strength tester

method:Strip the copper wire at least 10mm from one side of the substrate. Place the sample plate on the tester. Strip the remaining copper wire with a vertical force. Record power. Standard: the stress shall exceed 1.1n/mm.

5. Weldability test

Purpose: check the solderability of pad and through hole on board.

Equipment: soldering machine, oven and timer.

method:Bake the plate in an oven at 105 ℃ for 1 hour. Welding flux. Put the plate into the solder machine at 235 ℃ and take it out. After 3 seconds, the solder pad in the inspection area shall be soaked with tin. Put the plate vertically into a soldering machine at 235 ℃, take it out after 3 seconds, and check whether the through hole is soaked with tin. Standard: the area percentage shall be greater than 95 All through holes shall be tin impregnated.

6. Voltage withstand test

Purpose: to test the withstand voltage ability of circuit board.

Equipment: withstand voltage tester

method:Clean and dry the sample. Connect the circuit board to the tester. Increase the voltage to 500V DC at a speed not higher than 100V / s. Keep it at 500V DC for 30 seconds. Standard: there shall be no fault on the circuit.

7. Glass transition temperature test

Objective: to check the glass transition temperature of the plate.

Equipment: DSC (differential scanning calorimeter) tester, oven, dryer, electronic scale.

method:Prepare the sample with a weight of 15-25mg. Bake the sample in an oven at 105 ℃ for 2 hours, and then put it into a dryer to cool to room temperature. Put the sample on the sample table of DSC tester and set the heating rate to 20 ℃ / min. Scan twice and record TG. Standard: TG shall be higher than 150 ℃.

8. CTE (coefficient of thermal expansion) test

Objective: evaluate the CTE of the board.

Equipment: TMA (thermomechanical analysis) tester, oven, dryer.

method:Prepare samples with dimensions of 6.35 * 6.35mm. Bake the sample in an oven at 105 ℃ for 2 hours, and then put it into a dryer to cool to room temperature. Put the sample on the sample table of TMA tester, set the heating rate to 10 ℃ / min, and set the final temperature to 250 ℃, and record CTE.

9. Heat resistance test

Objective: To evaluate the heat resistance of plate.

Equipment: TMA (thermomechanical analysis) tester, oven, dryer.

method:Prepare samples with dimensions of 6.35 * 6.35mm. Bake the sample in an oven at 105 ℃ for 2 hours, and then put it into a dryer to cool to room temperature. Put the sample on the sample table of TMA tester and set the heating rate to 10 ℃ / min. Raise the sample temperature to 260 ℃.

The above is the related content of "PCB circuit board reliability test" brought by the core creation test. I hope it can be helpful to you. We will bring more wonderful content in the later stage. The company's testing services cover: electronic component testing and verification, IC authenticity identification, product design and material selection, failure analysis, function testing, factory incoming material inspection, tape braiding and other testing items. Welcome to call Chuangxin testing, we will serve you wholeheartedly.
