How to judge the quality of IGBT power transistors?

Date:2024-03-11 15:50:54Views:33

With the increasing advancement and efficiency of power electronics technology, IGBT has become a popular choice for industrial applications. IGBT (Insulated Gate Bipolar Transistor) is a three terminal semiconductor device that supports high voltage and high current applications while providing fast switching speed. Like any other electronic device, IGBTs also experience performance degradation and may fail due to various factors. Therefore, it is crucial to test the good or poor condition of IGBT before using it in power electronic circuits to prevent any potential catastrophic damage to the equipment and avoid financial losses. In this article, we will discuss various methods for testing the good or bad state of IGBT.

Test IGBT:

There are multiple methods available for testing the good or bad condition of IGBTs, including:

1. Appearance inspection:

In this method, we will visually inspect the IGBT and check for any signs of physical damage or discoloration. Checking for any visible damage or discoloration is the quickest way to ensure that the IGBT is in normal condition.

2. Multimeter testing:

A multimeter is one of the most common and simplest tools used to test the quality of IGBT. A multimeter test can determine whether the IGBT is conducting.

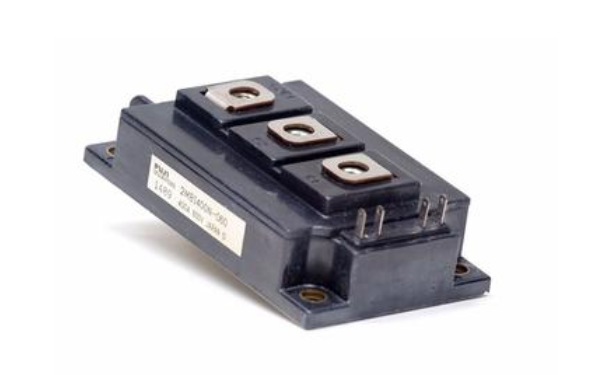

如何判断IGBT功率管的好坏?

You can use a multimeter to test IGBT according to the following steps:

Step 1: Turn off the power and remove the IGBT from the circuit board.

Step 2: Set the multimeter to diode test mode.

Step 3: Contact the leads of the multimeter with the gate and emitter pins of the IGBT.

Step 4: A good IGBT will generate a small voltage drop of approximately 0.6V to 1V, while a damaged or faulty IGBT will not generate any voltage.

Step 5: Perform the same steps on the collector and emitter pins of the IGBT.

3. Static test:

Static characteristic testing helps to determine the electrical characteristics of IGBT and its operating mode under different conditions. You may need to check the following parameters:

Continuity testing - It checks the overall electrical continuity of the equipment to ensure there are no open circuits or defects.

Leakage current test - This test helps to check the amount of current leakage when the device is turned off.

Gate Voltage Test - This test checks the voltage required to turn on/off the IGBT.

Collector emitter voltage test - This test checks the maximum voltage that the IGBT can handle before a fault occurs.

4. Dynamic test:

Dynamic testing evaluates the switching characteristics of IGBTs and measures the on and off speeds of the devices. It also helps to check the device's response to fast voltage transients.

The dynamic characteristics of IGBT can be tested according to the following steps:

Step 1: Apply a positive voltage to the gate of the IGBT.

Step 2: Observe the voltage drop across the device.

Step 3: Apply negative voltage to the gate to turn off the IGBT.

Step 4: Observe the voltage decay time to ensure that the device is turned off within the specified time range.

5. Current and voltage measurement:

The current and voltage characteristics of IGBT also help determine its good or bad condition. You can use various tools to measure these parameters, including oscilloscopes or clamp gauges. Oscilloscope testing helps to measure the voltage and current waveforms of IGBTs and ensure they are within the expected range.

In summary, IGBT (Insulated Gate Bipolar Transistor) is a very important semiconductor device in power electronics applications. Therefore, testing its good or poor condition before using it in power electronic circuits is crucial to prevent any potential accidents, equipment damage, and financial losses. The various methods discussed in this article, including visual inspection, multimeter testing, static and dynamic testing, current and voltage measurement testing, provide a comprehensive method for testing the good or bad state of IGBTs. Familiarize yourself with these technologies to ensure that the IGBT operates as expected, and check the specifications of the equipment to ensure maximum operation.
